What Is IC Substrate Technology FC BGA CSP

IC substrate technology—particularly FC-BGA and FC-CSP—refers to the advanced packaging platforms used to connect semiconductor chips to printed circuit boards (PCBs) in high-performance electronic devices.

Here's a breakdown of the key terms:

🧠 What Is IC Substrate Technology?

IC substrates act as interposers between a silicon die and the motherboard. They:

  • Provide mechanical support

  • Route electrical signals and power

  • Manage thermal performance

They’re more advanced than standard PCBs and are made with build-up layers, via connections, and high-density interconnects (HDI).

⚙️ Key Technologies

Term Meaning
FC-BGA Flip-Chip Ball Grid Array – High-performance substrate using solder balls directly on the chip, then connected to a BGA package.
FC-CSP Flip-Chip Chip Scale Package – A more compact version of FC-BGA, where the chip package is nearly the same size as the die itself.
BT/ABF Substrates Materials used in FC-BGA/CSP. BT (Bismaleimide Triazine) is common in mobile; ABF (Ajinomoto Build-up Film) dominates in high-end CPUs and GPUs.

🔍 Differences Between FC-BGA and FC-CSP

Feature FC-BGA FC-CSP
Application High-end (CPU, GPU, networking) Mobile, consumer electronics
Size Larger Smaller
Layers Up to 10+ build-up layers Typically fewer layers
Cost Higher More cost-sensitive
Substrate Material ABF or BT Usually BT

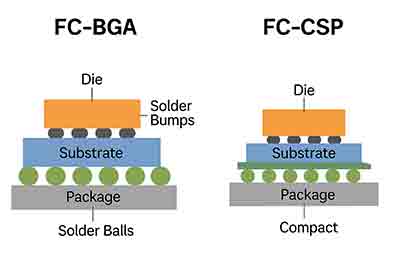

Side-by-side diagram comparing FC-BGA and FC-CSP semiconductor packaging showing die, solder bumps, substrate, and solder balls

🔌 Why It Matters

These substrate technologies are crucial enablers for:

  • AI chips (NVIDIA, AMD)

  • 5G baseband processors

  • Automotive ADAS systems

  • High-performance computing (HPC)

📈 Market Relevance

  • Ajinomoto ABF demand is surging due to AI and data center growth.

  • BT substrates remain strong in mobile and IoT devices.
