Best Practices for Wafer Polishing and Lapping

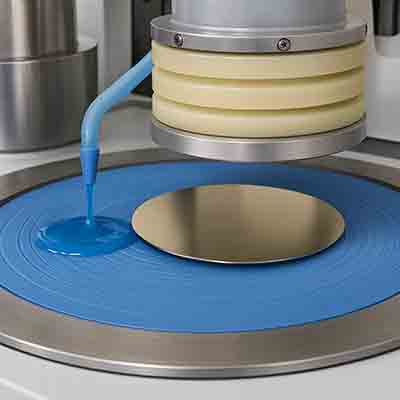

Fundamental Principles Behind Precision Wafer Polishing and Lapping

Wafer polishing and lapping are essential semiconductor manufacturing processes that define the final surface quality, flatness, and dimensional accuracy of silicon and advanced material wafers. As device geometries shrink and performance requirements increase, these processes have evolved from simple mechanical abrasion to highly engineered workflows that combine precise mechanical, chemical, and metrology techniques.

Why Wafer Polishing and Lapping Matter

The quality of the wafer surface directly affects downstream fabrication steps such as deposition, etching, lithography, and device patterning. Even nanometer-scale surface variations can lead to overlay errors, yield loss, or device malfunction. Lapping establishes wafer thickness, parallelism, and flatness, while polishing—especially Chemical Mechanical Polishing (CMP)—creates the ultra-smooth, defect-free finish required for modern semiconductor devices.

Understanding the Lapping Process

Lapping uses loose abrasive particles suspended in a carrier fluid to remove material uniformly across the wafer surface. Unlike grinding, which uses fixed abrasives, lapping’s free abrasives enable extremely controlled, uniform material removal. Proper lapping improves thickness uniformity, removes saw marks and subsurface damage, and prepares wafers for high-precision polishing.

Key Elements of Lapping

• Lapping Plates: Typically cast iron or composite materials engineered for flat, stable processing.
• Abrasives: Silicon carbide, aluminum oxide, or diamond depending on wafer material and hardness.
• Vehicle: Water- or oil-based liquids to transport abrasives and manage heat.
• Process Parameters: Pressures around 3–5 psi and speeds of 30–60 rpm for silicon wafers.

In advanced manufacturing, in-situ monitoring systems measure removal rates, thickness evolution, and flatness in real time, ensuring consistent results as wafer diameters scale to 200mm and 300mm.

Chemical Mechanical Polishing (CMP)

CMP enables the atomic-level smoothness required for modern semiconductor structures. It combines chemical etching with mechanical abrasion to remove material without inducing damage or crystal defects. CMP is essential for planarizing multi-layer structures, preparing wafers for photolithography, and achieving mirror-quality surfaces.

How CMP Works

CMP slurries contain abrasives (such as silica or alumina) combined with oxidizers, pH stabilizers, and surfactants. The chemical components soften or oxidize the wafer surface, while the mechanical action of the slurry and polishing pad removes the altered material. The result is outstanding surface quality with roughness values measured in angstroms.

Key CMP Components

• Polishing Pads: Polyurethane pads engineered for controlled hardness, porosity, and wear behavior.
• Slurries: Customized formulations based on the wafer material.
• Endpoint Detection: Optical or friction-based methods to precisely stop polishing at the desired film thickness.
• Pad Conditioning: Ensures consistent pad texture and removal rates.

CMP equipment uses multiple zones of pressure control, advanced fluid delivery systems, and closed-loop feedback to maintain stability throughout the process.

Material-Specific Processing Techniques

Silicon Wafers

Silicon wafer preparation begins with multi-stage lapping, followed by CMP using silica-based slurries that deliver sub-nanometer roughness. Edge profiling helps prevent chipping during subsequent processing. The techniques used depend on the intended application—whether for microelectronics, solar cells, power devices, or research wafers.

Silicon Carbide (SiC) Wafers

Because silicon carbide is extremely hard (Mohs 9–9.5), it requires diamond abrasives and longer processing cycles. CMP for SiC uses specialized chemistries and elevated pH conditions to soften the surface. Despite the challenges, high-quality SiC surfaces are critical for power electronics, electric vehicle inverters, and high-temperature applications.

Process Parameters and Quality Control

Achieving consistent wafer quality requires precise control of pressure, platen speed, slurry flow, temperature, and abrasive size progression. Advanced process control systems monitor these variables in real time, making adjustments to maintain uniform material removal.

Critical Quality Metrics

• Surface Roughness: Target values under 0.5 nm for polished wafers.
• Total Thickness Variation (TTV): Often under 1 µm for 200mm wafers.
• Flatness: Typically under 0.5 µm across the full wafer.
• Defect Density: Ideally below 0.1 defects per cm².

Metrology tools such as Atomic Force Microscopy (AFM), optical profilometry, ellipsometry, and automated defect inspection systems verify that wafers meet stringent industry standards.

Abrasive Selection and Progression

The abrasive sequence—from coarse lapping to final polishing—determines final surface quality. Diamond, silicon carbide, alumina, and colloidal silica are selected based on wafer material, processing stage, and desired finish. Each transition eliminates scratches from the previous step while reducing processing time.

Pre- and Post-Processing Requirements

Successful wafer processing depends heavily on careful preparation and post-processing. Proper cleaning, fixturing, and defect inspection before lapping prevent contamination and mechanical damage. After polishing, wafers undergo multi-stage cleaning, surface passivation, and strict handling protocols to preserve surface integrity.
