Order Low-TTV & Ultra-Flat Silicon Wafers
UniversityWafer supplies low-TTV and ultra-flat silicon wafers for lithography, MEMS, photonics, and advanced packaging in the United States. Our inventory includes DSP Prime and ultra-flat silicon grades with documented thickness and flatness data.
We support standard and custom specifications for universities, startups, and production fabs.
Get Your Quote FAST! Or, Buy Online and Start Researching Today!
Common Flatness Options
- TTV < 1 μm (Ultra-flat)
- TTV < 2 μm (Low-TTV Prime)
- DSP Prime wafers
- Test & Mechanical grades
Quick Links
Related Flatness & TTV Resources
Key Takeaways (TTV & Flatness in Plain English)
| Question | Short Answer |
|---|---|
| Is TTV the same as flatness? | No—TTV is thickness uniformity; flatness describes surface deviation from a plane (GF/LF/SF, TIR, bow/warp). |
| When do I need ultra-flat? | Critical lithography, bonding, optics, and many quantum/precision programs often target TTV < 1 µm plus tight bow/warp limits. |
| Can I do small custom TTV orders in the US? | Yes—custom flatness and TTV requirements are commonly supported for US universities, government labs, and startups. |
Start with the arithmetic: what TTV actually means

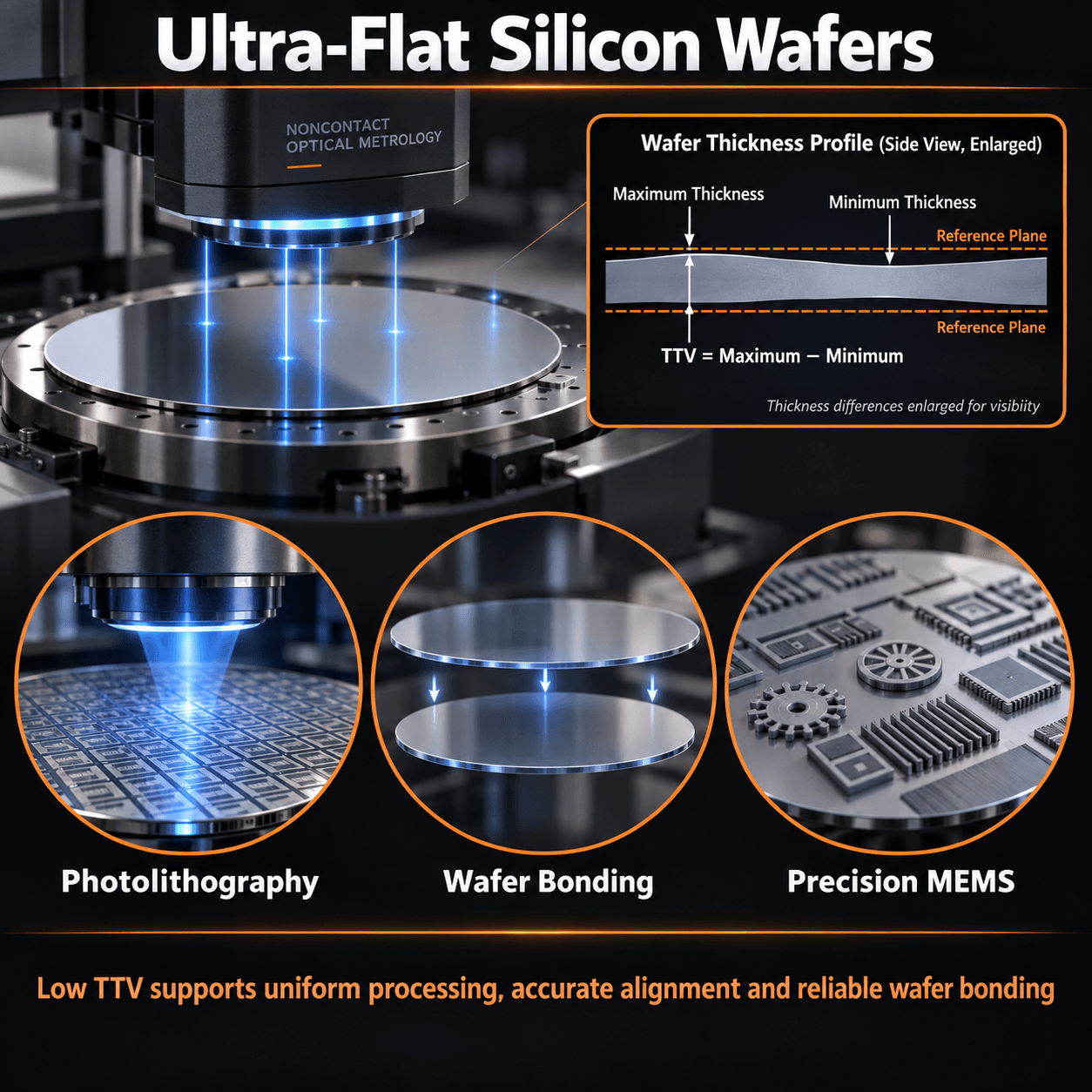

TTV is the simple difference between the maximum and minimum thickness measured across the wafer. Example: if the thickest point is 725.5 µm and the thinnest is 723.8 µm, then TTV = 1.7 µm. That’s why datasheets often state a guaranteed upper bound like “TTV < 1 µm” or “TTV < 2 µm.”
Flatness is a family of specs (GF, LF, SF, TIR, bow, warp)
Flatness metrics describe how the wafer surface deviates from a plane under defined support conditions. US tools—especially i-line and DUV steppers used in R&D—can be sensitive to site flatness and bow/warp, not only TTV. A wafer can have good TTV but still fail focus if bow or site flatness is poor.
- Global Flatness (GF): overall flatness across most of the wafer.
- Local Flatness (LF): flatness over larger sub-regions (stepper field relevance).
- Site Flatness (SF): small regions matching die/exposure site sizes.
- Total Indicator Reading (TIR): indicator-based mechanical flatness vs reference plane.
- Bow & Warp: global curvature and out-of-plane deformation.
Spec “right-sizing” by grade and application
A practical way to avoid over-spending is to align TTV/flatness to wafer grade and the stage of your US process. Many teams qualify with test/mechanical wafers first, then tighten specs only after the flow is stable.
| Grade | Typical US Use | TTV / Flatness Guidance |
|---|---|---|
| Prime | Device fabrication, photolithography, advanced MEMS | Low TTV (often < 2 µm) + SEMI-class flatness. |
| Ultra-flat Prime | Critical lithography, bonding, optics, quantum | Very low TTV (< 1 µm) + tight bow/warp limits. |
| Test Grade | Equipment setup, etch/deposition trials | Moderate TTV; flatness sufficient to mimic production behavior. |
| Mechanical Grade | Training, mechanical evaluation, non-critical tests | Loose TTV/flatness for maximum cost savings. |
Don’t ignore surface roughness
TTV and flatness describe geometry; surface roughness describes micro-topography. For high-resolution lithography and bonding, all three must be controlled together—especially for optics, microfluidics, and quantum devices in US toolsets.
US tariffs & lead-time planning (3 strategies that work)
For ultra-flat wafers, tariffs and international freight can affect both price and lead time. Three practical strategies commonly used by US customers:
- Local stocking of critical specs (often low-TTV 4" and 6") to avoid import delays.
- Hybrid sourcing: domestic stock for urgent/high-risk runs + scheduled imports for less time-critical needs.
- Spec right-sizing: avoid over-specifying if your toolset doesn’t require it.
Conclusion
TTV flatness specifications are not just numbers—they are practical controls for focus, thickness behavior, and yield across increasingly complex US processes. If you share your lithography wavelength and bonding requirements, we can recommend a combination of TTV, flatness, and roughness that is practical for your toolset and budget.
