Quartz Crystal Microbalance QCM Sensors

Need AT-Cut Quartz Wafers for QCM Sensors?

Quartz Crystal Microbalance (QCM) sensors rely on high-quality AT-cut quartz wafers to detect extremely small mass changes by measuring shifts in resonant frequency. These precision substrates are widely used in thin film deposition, CVD processing, biosensing, surface chemistry, semiconductor manufacturing, and vacuum coating research.

UniversityWafer supplies research-grade single crystal quartz and AT-cut quartz wafers in multiple diameters, thicknesses, polishing options, and custom specifications. Whether you are fabricating prototype QCM sensors or scaling production, we can provide substrates with the surface quality and dimensional tolerances required for high-precision frequency measurements.

Get Your QCM Quartz Wafer Quote FAST! Or, Buy Online and start researching today!

Research Request: AT-Cut Quartz for QCM Sensors

A university research laboratory contacted UniversityWafer seeking AT-cut quartz wafers for custom Quartz Crystal Microbalance (QCM) sensor fabrication:

"We are looking for blank AT-cut quartz wafers with thicknesses ranging from 0.1 mm to 0.5 mm. The wafers will be fabricated into QCM sensors, so double-side polishing is required. Diameters between 4 and 6 inches are acceptable, and we anticipate ordering multiple wafers at each thickness for experimental research."

UniversityWafer routinely supplies custom AT-cut quartz wafers in multiple diameters, thicknesses, orientations, and polishing grades for researchers developing QCM sensors, SAW devices, biosensors, thin film monitoring systems, and other precision piezoelectric applications. We also offer custom wafer processing, including double-side polishing and thicknesses tailored to your experimental requirements.

Choosing the Right Quartz Wafer for QCM Applications

Selecting the ideal AT-cut quartz wafer is one of the most important decisions when designing a Quartz Crystal Microbalance (QCM) sensor. The performance of a QCM device depends on several substrate characteristics, including crystal orientation, wafer thickness, diameter, polishing quality, surface roughness, and resonant frequency. Optimizing these parameters helps maximize measurement accuracy, frequency stability, and long-term sensor reliability.

Unlike conventional mass measurement techniques, QCM sensors detect changes in mass by monitoring small variations in the resonant frequency of a vibrating quartz crystal. Because the frequency shift is directly related to the deposited mass, selecting the proper quartz substrate is essential for obtaining highly repeatable results in thin film deposition, CVD processing, physical vapor deposition (PVD), electrochemical sensing, biosensing, and surface adsorption studies.

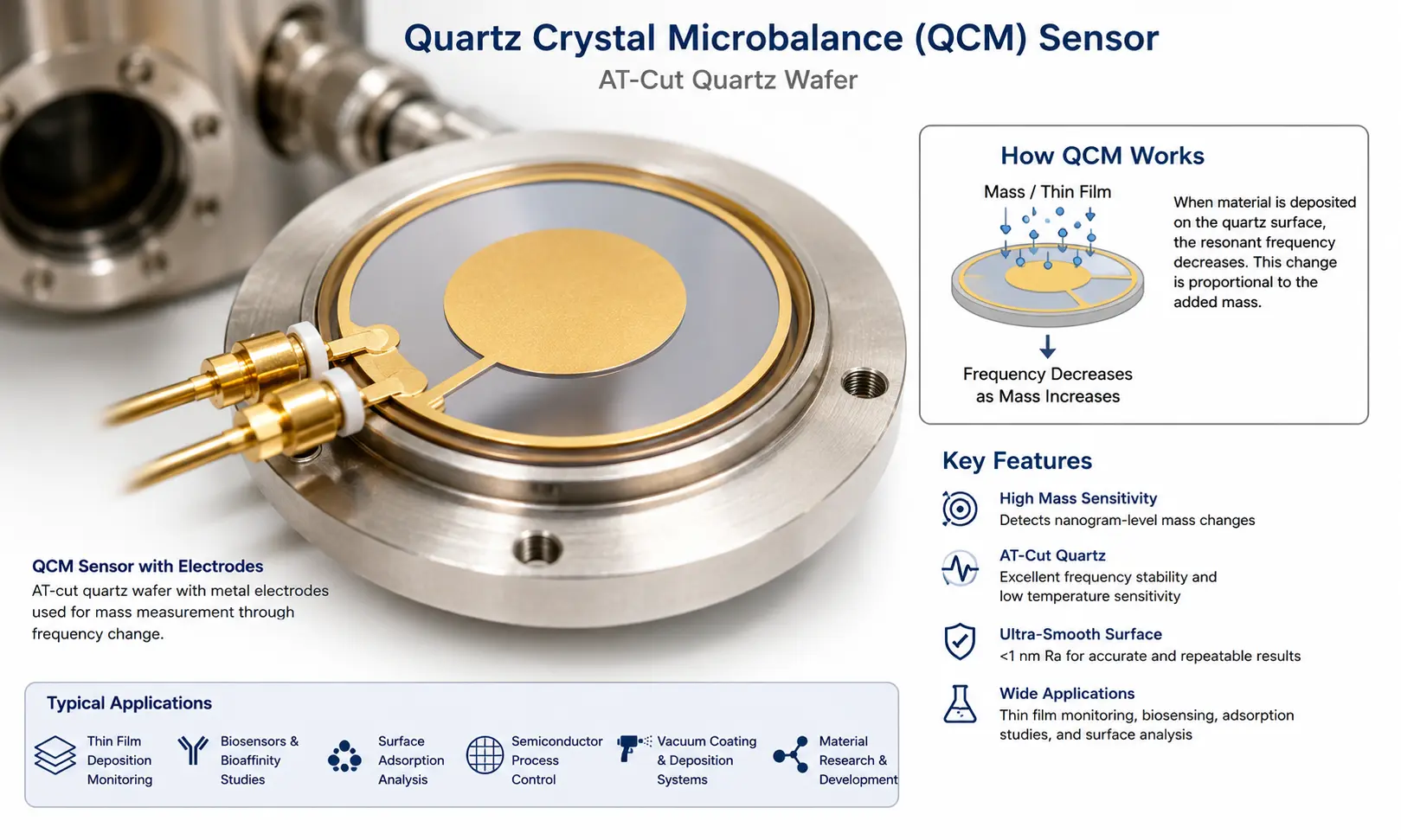

Quartz Crystal Microbalance QCM sensor using AT-cut quartz wafers

AT-Cut Quartz Wafers Used for QCM Sensors

Researchers and manufacturers use ultra-flat double-side polished quartz substrates to fabricate high-precision QCM sensors for vacuum deposition monitoring and thin film analysis.

Common AT-cut quartz wafer specifications for QCM applications include:

Diameter	Orientation	Thickness	Polish	Primary Flat	Grade	Seed	Top Side Ra	Back Side Ra
100 ± 0.3 mm	AT-Cut	0.1 ± 0.03 mm	DSP	32.5 ± 2.5 mm	SAW	With Seed	<1 nm	<1 nm
100 ± 0.3 mm	AT-Cut	0.2 ± 0.03 mm	DSP	32.5 ± 2.5 mm	SAW	With Seed	<1 nm	<1 nm
100 ± 0.3 mm	AT-Cut	0.3 ± 0.03 mm	DSP	32.5 ± 2.5 mm	SAW	With Seed	<1 nm	<1 nm
100 ± 0.3 mm	AT-Cut	0.4 ± 0.03 mm	DSP	32.5 ± 2.5 mm	SAW	With Seed	<1 nm	<1 nm
100 ± 0.3 mm	AT-Cut	0.5 ± 0.03 mm	DSP	32.5 ± 2.5 mm	SAW	With Seed	<1 nm	<1 nm
150 ± 0.3 mm	AT-Cut	0.2 ± 0.03 mm	DSP	57.5 ± 2.5 mm	SAW	With Seed	<1 nm	<1 nm
150 ± 0.3 mm	AT-Cut	0.35 ± 0.03 mm	DSP	57.5 ± 2.5 mm	SAW	With Seed	<1 nm	<1 nm
150 ± 0.3 mm	AT-Cut	0.4 ± 0.03 mm	DSP	57.5 ± 2.5 mm	SAW	With Seed	<1 nm	<1 nm
150 ± 0.3 mm	AT-Cut	0.5 ± 0.03 mm	DSP	57.5 ± 2.5 mm	SAW	With Seed	<1 nm	<1 nm

Crystal Orientation

Most QCM sensors are fabricated using AT-cut quartz because this orientation provides excellent frequency stability near room temperature and minimizes temperature-induced frequency drift. AT-cut quartz is also widely used in resonators, oscillators, frequency control devices, and precision analytical instruments due to its outstanding piezoelectric properties.

Wafer Thickness and Frequency

Quartz wafer thickness directly influences the operating frequency of a QCM sensor. Thinner wafers resonate at higher frequencies and provide greater sensitivity for detecting extremely small mass changes, while thicker wafers are mechanically stronger and easier to handle during processing. Researchers often evaluate several thicknesses during prototype development to optimize sensitivity, durability, and fabrication yield.

Surface Finish and Polishing

Surface quality plays a critical role in QCM performance. Ultra-flat double-side polished (DSP) quartz wafers provide superior thin-film uniformity, excellent electrode adhesion, and consistent oscillation characteristics. Low surface roughness minimizes defects that could affect frequency stability or introduce unwanted measurement variability during deposition experiments.

Wafer Diameter and Custom Specifications

UniversityWafer supplies single crystal quartz wafers in multiple diameters, including research and production sizes suitable for custom QCM fabrication. Available options include various thicknesses, crystal orientations, polishing grades, flat configurations, and custom processing to meet the requirements of university laboratories, semiconductor manufacturing, vacuum deposition systems, and industrial sensor development.

Typical QCM Research Applications

Researchers frequently use precision quartz wafers for QCM systems in MEMS, integrated photonics, surface chemistry, nanotechnology, corrosion analysis, biomolecular interaction studies, optical coating development, plasma processing, and advanced materials research. Many of these applications require substrates with exceptionally low defect density, excellent piezoelectric response, and highly uniform polishing characteristics to ensure accurate frequency measurements over extended testing periods.

Why Researchers Choose UniversityWafer

UniversityWafer provides custom AT-cut quartz wafers for QCM sensor development with flexible specifications tailored to your research project. Available options include custom diameters, thicknesses, orientation tolerances, surface finishes, and polishing grades. Whether you are developing a prototype QCM sensor, monitoring thin-film growth, or building high-performance analytical instrumentation, our technical team can help identify the best quartz substrate for your application.
