What are Planar Waveguides?
Planar waveguides are structures used in optics and photonics to guide light or other electromagnetic waves through a thin planar layer. They are widely used in integrated photonics, optical sensing, biomedical diagnostics, and semiconductor device fabrication.

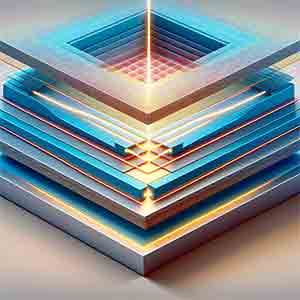

A planar waveguide typically consists of three layers: a core layer positioned between two cladding layers. The core layer has a higher refractive index than the surrounding cladding layers, allowing light to remain confined inside the structure through total internal reflection.
When light enters the waveguide at the correct angle, it becomes trapped inside the core layer and propagates along the structure with controlled optical confinement. This principle allows planar waveguides to transmit optical signals with high precision in optical waveguide systems.
Applications of Planar Waveguides
Planar waveguides are widely used in integrated optical circuits and modern photonic technologies. They are important for applications requiring compact light transmission, optical signal processing, and optical sensing.
- Integrated photonics
- Biomedical diagnostic devices
- Optical biosensors
- Photonic integrated circuits
- Optical communication systems
- Waveguide sensors
- Optical modulators and splitters
- Lab-on-chip devices
How Planar Waveguides Work
The guiding principle behind planar waveguides is total internal reflection. Light remains confined inside the core layer because the refractive index of the core is higher than that of the cladding layers surrounding it.
This optical confinement enables efficient signal transmission and makes planar waveguides important for photonic integrated circuits, sensing systems, optical communication, and semiconductor-based photonics research.
Types of Planar Waveguides
There are several types of planar waveguides used in photonics research and semiconductor fabrication. Common geometries include slab waveguides, strip waveguides, and rib waveguides. Each design provides different optical confinement properties and fabrication advantages depending on the application.
Materials Used for Planar Waveguides
The materials used to fabricate planar waveguides vary depending on optical wavelength, refractive index requirements, and device application. Common materials include fused silica wafers, silicon, polymers, sapphire, and other semiconductor substrates.
SOI wafers are widely used for silicon photonics and integrated optical circuits because they provide strong optical confinement and compatibility with semiconductor manufacturing processes.
Waveguide Fabrication Processes
Planar waveguide fabrication often involves photolithography, thin film deposition, metal coating, etching, polishing, and wafer dicing. Precise process control is important because surface defects or thickness variations can affect optical performance.
Researchers developing waveguide chips frequently use silicon wafers, fused silica substrates, and other optical materials to create low-loss waveguide structures for photonic and biomedical applications.
Planar Waveguides for Biomedical Devices
Planar waveguides are increasingly used in biomedical technologies for pathogen detection, optical biosensing, and lab-on-chip diagnostics. Their ability to guide light efficiently inside compact devices makes them useful for next-generation medical and sensing systems.
UniversityWafer, Inc. supplies substrates and wafers used for planar waveguide research, optical sensing, integrated photonics, and semiconductor device development.
