Silicon Chip Wafers for Research and Production

university wafer substrates

Large Selection Silicon Wafer for Chip Fabrication

A Technical Support Manager from a large semiconductor company requested the following quote:

Could you provide quote for (Thickest ~ 1mm) Silicon chip of 15mm X 15mm, 2.5mm x 3mm, 6.5mm x 6.5mm for 50pc or 100pc each?

UniversityWafer, Inc. Quoted:

  1. Si Wafer - 15x15x1.5mm, DSP, P<100>, 1-20 OHM-CM
  2. Si Wafer - 2.5x3.0x2mm, DSP, P<100>, 1-20 OHM-CM
  3. Si Wafer - 6.5x6.5x2mm, DSP, P<100>, 1-20 OHM-CM

Reference #254029 for specs and pricing.

A Ph.D Candiate Requested the following:

I need the Silicon chips just as a substrate, so I do not care too much about the specs. I would require a total amount of 40-50 chips.

UniversityWafer, Inc. quoted:

Item   Qty.   Description
GU13. 50   Silicon wafers, per SEMI Prime, P/P 4"Ø×1,000±25µm,
                    Diced into 55mm x 55mm×1mm squares,
                    p-type Si:B[100]±0.5°, Ro=(10-20)Ohmcm,
                    TTV<5µm, Bow<40µm, Warp<40µm,
                    1 square per wafer,
                    Blue tape and sealed in single wafer cassettes.

Reference #253849 for pricing.

Silicon Chip Carrier Used in Plasma Etch Chamber

A Research Engineer from a small company requested the following quote:

We need an 200 mm aluminum wafer to be used as silicon chip carrier inside a plasma etch chamber. It would be even better if the wafer has a 2cm*2cm square notch in the middle so we can place the silicon chip in the notch. Do you provide this type of wafer? Could you please send me a quote? Thank you very much!

Reference #248847 for specs and pricing.

UniversityWafer, Inc. can supply you with silicon wafers of all shapes and sizes in small and large quantities for your researcd, and or production.

See our Silicon Chip Calculator Below! Type in the diameter and how many chips you want for your answer!

We carry large diameter silicon wafes. The larger the wafer (die) the higher the yield of chips!

Get Your Quote FAST! Or, Buy Online and Start Researching Today!


Video: How do they make Silicon Wafers and Computer Chips?

Chip Dicing Calculator


Typical Wafer Silicon Chip Layout

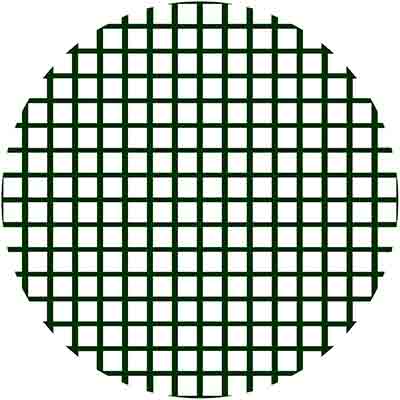

Below is the typical appearance of a silicon wafer after dies have been fabricated on the wafer's surface. The chips that appear are cut off at the edge are just for show. Only complete squares would be left on the polished silicon face.

silicon wafer to make microchips


Home Made Silicon Wafer

Learn how to make silicon wafers from your own home!

Important Silicon Chip Terms.

  • chip fabrication
  • silicon allows
  • silicon cpus
  • silicon devices
  • excellent transistors
  • worlds silicon
  • chip development
  • silicon surface
  • semiconductor material
  • silicon computer
  • chip production
  • traditional silicon
  • chip designers
  • semiconductor companies

What are Silicon Chips Primarily Used In?

Silicon chips, also known as integrated circuits or microchips, are primarily used in various electronic devices and systems. These small, flat pieces of semiconductor material serve as the core of electronic components, enabling the functionality of numerous products. Some common applications include:

  1. Computers and smartphones: Silicon chips are essential in processors, memory chips, and other components that make these devices work efficiently.

  2. Consumer electronics: Devices like televisions, gaming consoles, and digital cameras rely on silicon chips for their processing and functionality.

  3. Automotive industry: Modern vehicles use silicon chips in engine control modules, sensors, and other systems for improved performance and safety.

  4. Telecommunications: Networking equipment and communication devices (such as routers, switches, and modems) use silicon chips to process and manage data.

  5. Industrial automation: Robotics, control systems, and manufacturing equipment rely on silicon chips for efficient operation and precision.

  6. Medical devices: Advanced medical equipment, such as diagnostic tools, imaging systems, and implantable devices, use silicon chips to provide accurate and reliable performance.

  7. Aerospace and defense: Flight control systems, satellite components, and military equipment use silicon chips for their advanced capabilities and reliability in demanding environments.

  8. Internet of Things (IoT): Connected devices and smart home appliances utilize silicon chips for communication, processing, and control.

Silicon Wafers Used for Making Chips

Below is the timeline of wafer diameter introduction. It is interesting to not that 25mm silicon wafers are still used by researchers, mostly at the university level.

Dia Thick Year Introduced Weight per wafer  100 mm2 (10 mm) Die per wafer
1-inch (25 mm)   1960
2-inch (51 mm) 275 µm 1969
3-inch (76 mm) 375 µm 1972
4-inch (100 mm) 525 µm 1976 10 grams [19] 56
4.9 inch (125 mm) 625 µm 1981
150 mm (5.9 inch, usually referred to as "6 inch") 675 µm 1983
200 mm (7.9 inch, usually referred to as "8 inch") 725 µm. 1992 53 grams [19] 269
300 mm (11.8 inch, usually referred to as "12 inch") 775 µm 2002 125 grams[19] 640
450 mm (17.7 inch)(proposed).[20] 925 µm future 342 grams [19] 1490
675-millimetre (26.6 in) (Theoretical).[21] Unknown future

What Silicon Wafers are Used to Fabricate Chips?

Are you thinking of making your own computer chips to meet current world demand? If so, then you must be curious as to how you would do this!? First, you need to start with Silicon Wafers. Silicon is the ubiquitous choice for semiconductors and itegrated chip manufacturing. Silicon's optical and electrical properties make it the best, least expensive substrate available. Also, Silicon can be cut or ground and polished into different thicknesses. Different thicknesses provide varying application options to make a wide range of circuits at different price points.

First, silicon is a common element found in the earth's crust, and is one of the most abundant elements in the universe. Because it easily combines with oxygen and other materials, it must be separated from these compounds, refined extensively, and transformed into single-crystal wafers. The process of creating silicon wafers begins with the mining of silica sand, a natural substance that contains silicon dioxide. From there, the silicon is melted into an ingot and then cut into thin, flexible wafers.

turn silicon into a pc chipManufacturing silicon wafers is a vital part of the process of developing electronics. Once a silicon wafer is fabricated, it must go through several steps, including assembly, text, and packaging. This process is very time-consuming and can take six weeks. Fortunately, today, silicon wafers are produced by a number of companies in the U.S. and abroad. There are countless types of silicon, but none are used for making chips.

Once a silicon wafer is fabricated, it must undergo a series of processes. During the first stage, the semiconductor is grown on a silicon wafer. In the next step, the transistor is formed on the lowest layer. Then, it goes through the process of assembly, text, and packaging, and can take up to six weeks. However, once the semiconductors are produced, the process of assembly can take up to six weeks to complete.

Once the silicon wafer is fabricated, it must undergo a series of steps to make it usable for chip manufacturing. The first step is to melt the silicon ingots, which are used as silicon wafers. After this, the wafers are refined and the conductive components are applied. Then, the silicon is then baked to remove any remaining photoresist. Once the semiconductor crystals are formed, they must go through several stages before they reach a finished product.

By the 1960s, silicon wafers were being produced in the U.S. by SunEdison and MEMC. The process was developed to create high-capacity epitaxial silicon wafers. Then, the wafers must go through text, assembly, and packaging. During the process, up to 1,400 steps are needed to create a chip. During the process, the semiconductors are made from a single piece of silicon.

Once the silicon is fabricated, it is put through multiple stages of assembly. Once the silicon wafers are finished, they must go through text and packaging. The whole process can take six weeks. This process is important for chipmaking. It is vital for the manufacturing of semiconductors, as it is the key to modernization of the world. When we cut wavelengths to 100 nanometers, we'll be able to make chips that are smaller.

In order to make semiconductors, silicon is transformed into a semiconductor. The process can take up to 1,400 steps and is the second most abundant element on earth after oxygen. The silicon used for chipmaking is melted from silica sand, which is made of silicon dioxide. Then, it is cut into thin wafers, which is how semiconductors are made. After this, the silicon is processed into a product.

A silicon wafer is made by spinning molten silicon in a crucible. The seed crystal is slowly inserted into the molten silicon, and is slowly removed until a large crystal is formed. Then, it is buffered to remove impurities. It can be used for computer chips, but it can also be used for other applications. These chips are often found in a variety of products, from smart fridges to smartphones.

How Do You Make a Silicon Chip at Home?

If you've ever wondered how a semiconductor is made, you're not alone. There are millions of people who have attempted to build a silicon chip at home. There are also many kits available online, which are ideal for beginners. You can learn more about the process and the materials used by following these instructions. You can even sell your chip on eBay if you have a lot of spare time.

You'll need a wafer large enough to make a chip. You'll need one 300 mm in diameter, or the size of a dinner what do silicon ingots look likeplate. Several layers of copper are used to attach the silicon to the aluminum pads. The silicon on the wafer is then etched to form the circuit. You'll need a bonding machine to apply the wires to the aluminum pads, which is a complicated process.

A transistor can contain millions of transistors and has a large number of components. This is called a multi-gate device. You can also make a mono-gate device by using a single silicon chip. You'll need a lot of silicon in order to make a mono-layer chip. A few thousand dollars will give you a few dozen of these. Once you have a few hundred strands of gold wire, you can apply it to the silicon layer.

The first step in making a silicon chip is to prepare the materials you'll need. You'll need a gold wire and a bonding machine. You'll need a bonding machine to bond the wire to the aluminum pads of the chip. It takes 30 minutes to an hour to apply the gold wire to the silicon wafer. The process can take several hours. There are a lot of steps involved in the process and you'll need a lot of patience.

The second step is to prepare the copper wire that connects the silicon chip to the silicon wafer. The aluminum pads will be made of copper. The next step is to prepare the aluminum layers with the silicon. After this, you'll need to position the copper pads and the gold wire on the aluminum. Then, you'll need to place the gold on the aluminum pads. This will take 30 to an hour.

The third step is to position the copper or gold wire on the aluminum pads. The copper wire is crucial for the chip's aluminum pads. The wire is necessary for the copper to adhere the chip to the aluminum. The silicon will not work without the metal. A thin layer of gold will hold it together. A thick silicon layer is necessary for the chip to function properly. The fourth step is to place the gold electrodes.

The fourth step is to build the copper wiring on the aluminum pads. This step is a bit more complicated than the first. Once you've made the copper wire, you'll need to apply the gold wire to the chip's aluminum pads. Then, you'll need to place the gold wire on the aluminum pads and then bond them together. This step takes about 30 minutes. However, it may take longer if you use thicker wire.

The fourth step is to make a silicon chip at home. By following the steps, you can make a silicon chip at home. This is a great opportunity to teach kids about science. If you have the time, it can help you build a computer. The second step is to create a chip for your home. It is a fun project for children and adults. The first step is to build the wiring for the aluminum pads.

The third step is to make the silicon chips at home. To do this, you need to buy a silicon wafer, which is a block of silicon. It is a 90-millimeter-wide block of material. It is arranged in a grid formation. Then, you need to assemble the circuit by connecting the aluminum pads to the silicon wafer. Once that is done, you have successfully built a chip.

What Are Silicon Chips?

Do you know what silicon chips are? How do they work? Do they allow precise control of the currents silicon chipbetween their components? Are they made of pure silicon, a silicon compound, polycrystaline silicon, or gallium nitride? These are all great questions to ask yourself if you're interested in learning about the technology behind modern electronics. Continue reading to learn more about these amazing devices! You'll be surprised at just how versatile they are.

Does a silicon chip allow precise control of the current between its components?

A semiconductor is a device that contains many individual components. The chip is then assembled into a circuit, usually called an integrated circuit (IC). A semiconductor chip can have hundreds or billions of these components. The semiconductor chip is typically made from a silicon wafer, also known as a substrate. This material is used in many different products, including personal computers, smartphones, and automobiles.

A silicon chip is made by slicing a thin, round piece of silicon, which is known as a wafer. A precision cutting machine, called a wafer slicer, makes these thin slices from the silicon ingot. The silicon surface is then polished to make it as smooth and durable as possible. The next step is to layer the silicon with metals. Silicon is used in the construction of transistors, ICs, and other electronic devices.

Laser-annealing is another method that allows a silicon chip to control the current between its components. Using lasers, it is possible to drill holes in a silicon substrate, known as a semiconductor. Then, vias are fabricated through the laser ablation process. These holes are then metallized to form electrical contacts. It is important to note that the laser-annealed silicon chip is much more expensive than furnace annealing.

While semiconductors may not be the best material to use in electronic devices, their inherent properties make them excellent sensors. They can be controlled by electric fields, magnetic fields, light, and heat. If the current is controlled by the right amount of electricity, the chip can produce a desired output. And when it is controlled accurately, semiconductors are ideal for digital processing. However, there are a few problems associated with semiconductors.

Integrated circuits are made up of hundreds of smaller, independent parts. These pieces of silicon are then cut into individual IC chips. This process takes place in a highly regulated environment called a clean room. The air is filtered, and equipment operators wear lint-free clothing and protective head and foot coverings. During the manufacturing process, certain IC components are sensitive to certain frequencies of light. Because of this, they are protected from sunlight to prevent any harmful effects.

Currently, silicon transistors are reaching their physical limits. The doubling of transistors per unit area will likely end around 2025, when the limiting physical factors in silicon chips are reached. But some researchers at RMIT University recently developed a metal-based field emission air channel transistor that can maintain this doubling for over two decades. This could allow chip makers to increase the number of transistors per unit volume.

Is a silicon chip made of pure silicon or a combination of silicon and carbon?

The answer to this question is a resounding "yes." While computer chips are incredibly small and light, the production process is far from simple. Silica is the basic ingredient in sand, and it's the most abundant element in the Earth's crust. Silica is first heated in an Oregon plant with carbon to create silicon. This carbon is then combined with hydrogen gas to create a hyperpure silicon rod.

The most common source of silicon minerals is China, although other countries are also producing large amounts. The largest producers of silicon minerals are Brazil, Norway, and Russia. While silicon is an important material in computers, many manufacturers choose to use the carbon-based materials because they are more recyclable and less likely to harm the environment. There are a number of differences between carbon-based and silicon-based chips, but the basic chemical composition of the material does not change much.

A semiconductor is an element that possesses characteristics of both a metal and an insulator. Silicon is also a relatively abundant element, but it rarely occurs in its pure state for electronic applications. To be considered pure, silicon must contain fewer than one non-silicon atom per billion. Silicon is extracted from silica sand, which is specially quarried for this purpose.

Despite its low-temperature properties, silicon is relatively inactive. In fact, the elemental state of silicon is virtually inactive. It reacts with other elements to form halides and silicides. However, elemental silicon is unaffected by acids, except hydrofluoric acid. Water vapour and oxygen will attack silicon, and they will form a layer of silicon dioxide.

Besides semiconductor wafers, silicon is used in many other applications. Most of MG-Si is alloyed with other elements to improve its properties. Silicon is also available as polycrystalline ("poly") or amorphous ("glass-like" non-crystalline) forms for use in photovoltaic cells, transistor gates, and component structures.

In a semiconductor, the crystalline semiconductor material is used for transistors, capacitors, and other electronic devices. In addition to these, silicon is also used in photovoltaic cells, rectifiers, and computer circuits. Photovoltaic cells convert sunlight into electrical energy. While rectifiers are used to change alternating current to direct current, all glass contains silicon dioxide.

The silicon chip is the preferred semiconductor material for field-effect transistors. Silicon is a more straightforward material to fabricate, and requires less specialty tools and extra processing. The silicon material's high melting point allows the semiconductor to be fabricated as gate-last, which is critical for manufacturing microchips. A dummy gate is required to make silicon chips.

The manufacturing process for semiconductor components begins with the growth of a single perfect crystal of silicon. Silicon crystals are then pulled from molten silicon. Silicon atoms deposit on the bottom surface of the seed crystal, which matches its crystalline lattice and extends it. The seed crystal is then sliced into thin wafers, less than a millimeter thick. These wafers are then polished to remove any defects.

Is a silicon chip made of polycrystaline silicon or gallium nitride?

In the semiconductor industry, silicon has been the dominant material for decades. However, with businesses demanding more powerful devices and increasingly sophisticated digital systems, it may be time for newer materials to take the spotlight. For example, in the field of power electronics, chips based on gallium nitride are becoming more popular. As such, they may soon be a serious contender for silicon's crown.

While pure silicon is the most common semiconductor material, polycrystaline silicon is also an option. It can serve as a gate electrode for MOS devices and can also be used as a resistor and ohmic contact in shallow junctions. The primary advantage of polycrystalline silicon is its electrical conductivity, but it is also more expensive than single crystal silicon.

Gallium nitride is a promising candidate to replace silicon in photovoltaic (PV) cells. This material is much more environmentally friendly than silicon and is a potential alternative for solar cells. However, it does not have the scalability and durability required for high-power electronics. Unlike silicon, it is more difficult to fabricate devices using this material, so more research is necessary.

The process is known as the Czochralski process. In this process, a large quartz crucible is heated to 1421°C and a small seed crystal is lowered into the molten silicon. This crystal will act as the starting point for a larger silicon crystal. The seed crystals are mounted on a rod with known crystal faces defined by the Miller indices (100, 110, 111).

Single-crystal silicon, also known as monocrystalline, is the most common type of silicon. It is a homogeneous material with no grain boundaries. Single-crystal silicon is hard to grow in the laboratory, but it does exist. Single-crystal silicon is also cheaper than polycrystalline silicon, and it is used in most electronic devices around the world.

Currently, silicon wafers are the most common materials used in IC manufacturing. Silicon is abundant and relatively cheap, and the refining process has evolved over the past few decades. Nowadays, modern electronic applications are based on communications, switching, and control. Circuitry for these devices needs to be thermally stable, which is why silicon with a band gap of 1.14 eV is ideal for computing.

In the last two decades, the polysilicon industry has become increasingly consolidated. In 2020, the top five companies will account for 73% of global production, up from 60% in 2008. This consolidation has led to a decline in local polysilicon producers, which means that high-quality polysilicon is available for a much higher price. It is important to note that the two main components of polycrystalline silicon are very similar.

Regardless of the type of semiconductor used, silicon wafers are a fundamental building block in integrated circuits. Silicon wafers are flat disks with a mirror-like surface. Silicon is found in almost every electronic device, so it is no surprise that silicon wafers are widely used in this industry. Furthermore, new fabrication techniques are making silicon wafers even more useful.

Video: From Sand to Silicon. How computer chips are made

What Silicon Chips Are Used In

Silicon chips can be made in different shapes. You can find them in data processing, LED lights, and what does a silicon processor chip look likemicroelectromechanical systems. However, the most common use of silicon chips is in the computer. The following are some examples of applications for silicon chips. You may be surprised to know that they are used in so many applications! Here are a few of them: [*] Lasers and Microelectromechanical systems

Data processing

Silicon is the second most abundant element on Earth after oxygen. Silicon dioxide is the main component of silicon wafers. It is then melted into a cylinder called an ingot, and is then sliced into thin wafers. Features on a silicon wafer are measured in nanometers, which is one millionth of a millimeter.

Silicon chips are also known as microprocessors. They are tiny pieces of silicon that contain electronic circuits, and they are the primary component of any computing device. They are used to process and transport data. Silicon chips are expensive because they are made of a semiconducting material, and their complex design makes them expensive to produce.

To make these tiny chips, silicon powder is heated to about 1,400 degrees Celsius. This heat causes the silicon to melt into ingots. Wafers are then cut into rectangular circuits and printed in factories. The chips are then shipped around the world. These chips are an essential part of computers, and the technology behind them continues to grow.

Silicon chips enable everything from virtual reality to on-device artificial intelligence to 5G connectivity and deep learning. All this computing results in huge amounts of data. According to one estimate, the world will produce 175 zettabytes of data every year by 2025. This is equivalent to one billion terabytes - enough to circle the earth 222 times.

The components of a silicon chip must be placed close together to allow electricity to flow between them. They are made of silicon, a naturally occurring semiconductor. It is a good electrical conductor, but it can also be an insulator under certain conditions. Silicon is also an excellent material for the fabrication of transistors, which are simple electronic devices that amplify electrical signals. They can also function as switches or represent Boolean operators.

Microelectromechanical systems

Silicon is a common material used to fabricate most integrated circuits found in today's consumer electronics. It has several characteristics that make it attractive for use in a broad range of MEMS applications. Among these are its near-perfect Hookean properties, which ensure little or no fatigue, and its ability to withstand billions or trillions of cycles without deterioration.

To manufacture MEMS devices, silicon chips are fabricated using a process called photolithography. The process works by transferring a master pattern onto a silicon wafer. Photolithography is one of the most common microfabrication processes, and involves creating a photoresist mask and exposing the silicon wafer to steam at about 900 degrees Celsius. This produces a thin layer of oxide on the silicon substrate and spin-coating it with a photoresist layer.

Surface micromachining was developed in the late 1980s as a way to make silicon micromachining more planar. This would enable silicon micromachining to mimic the morphology of a silicon wafer, and ultimately make silicon micromachining compatible with planar integrated circuit technology. The original concept involved using thin layers of polycrystalline silicon to build movable mechanical structures. These were then connected to interdigital comb electrodes, which are used to produce forces and detect in-plane movement capacitively.

Silicon is the second most common element in the world and is used to make many electronic devices. It is found in rock, soil, and natural water. Its natural abundance makes it an ideal material for many applications, including microelectronics and computers.

Microelectromechanical systems are incredibly complex microscale systems that contain many moving parts. They are typically made on a single silicon chip, and each segment contains specialized MEMS components, such as microvalves and microchannels.


Intel is working to reduce costs in ultrafast data communication systems by creating lasers on computer chips. Lasers are devices that send data via light pulses over fiber-optic cables. However, these systems are currently expensive and limited to long-distance, high-volume applications. This breakthrough could change all of that.

This new technology uses silicon chips to produce lasers with high-bandwidth. This could enable cheap silicon lasers to be built, and it could even be manufactured in existing semiconductor foundries and micromachining facilities. Other components, such as light guides and photodetectors, are needed to make the new devices work.

The development of silicon lasers is a long-term goal of scientists, as it would enable engineers to build optical and electronic devices on inexpensive silicon chips and eliminate the need for expensive exotic semiconductor materials. In the future, silicon lasers could lead to light-based systems that harness photons instead of electrons. They would also be able to shuttle large amounts of data at multigigabit-per-second rates. Recently, two research groups have reported that they have managed to produce continuous laser light on silicon.

Microchip lasers have many benefits over solid-state lasers, and their capabilities far exceed those of conventional lasers. The early versions of microchip lasers were continuous-wave devices and covered a wide spectrum of wavelengths. The early versions had modest tuning capabilities, but their short cavity lengths allowed them to become powerful pulsed devices.

The process of manufacturing silicon chips uses a process called photolithography. In this process, silicon is shaped in thin wafers, making it much more efficient than conventional circuitry. Using silicon wafers, semiconductors are built using different shapes, including a transistor and diode.

LED lights

LED lights utilize silicon chips, which emit light at specific wavelengths within the electromagnetic spectrum. While LEDs are made in many different colors, common ones include red, green, and blue. Some LEDs also produce amber and white light. Despite their widespread use, the technology still has some limitations.

LEDs are very efficient, making them a good choice for many lighting applications. However, they vary in price, ranging from very cheap to expensive. Buying cheap LEDs might save you some money but they may not last as long as the more expensive types. Furthermore, they might burn out too soon because they were not tested properly.

Silicon chips are also used in other forms of light. One popular LED technology is chip-on-board (COB). This technology offers a high-power LED with a high-lumen output. COB chips are generally used in more complicated lighting applications and offer better beam angles. On the other hand, SMD LEDs are used in more general lighting applications.

LEDs are controlled by current flowing through the diode and across a resistor. This current controls the brightness of the LED. A large current flow can increase brightness. However, large current flows are not practical for all LED applications. To ensure the safety of LEDs, it is recommended to use discrete components.

The brightness of LEDs is measured in milliamps (mA) or amperes (A). High-power LEDs can take currents ranging from 350mA to 3000mA. However, this current rating will vary with the type of LED.


Silicon chips are a key element in photodetectors. They provide a unique combination of rapid photoresponse and high responsivity gain, and they can be used in single-chip photonic-electronic systems. Photodetectors can also be made with nonsilicon substrates, allowing researchers to combine the benefits of both semiconductors.

Silicon photonics has become a key technology for a number of important applications, including laser radar, optical communications, and lab-on-chip sensing. Moreover, it is now being used in ultrabroad, cost-efficient photodetectors for many applications.

Silicon chips are made from silicon, the second-most abundant element on earth after oxygen. The process involves melting silica sand into a cylinder called an ingot. The cylinder is then sliced into thin wafers. The dimensions of these wafers are measured in nanometers, which are one millionth of a millimeter.

Photodetectors require a certain wavelength range to work properly. Specifically, they need to be sensitive to one or more optical wavelengths and have zero response to other wavelengths. For example, solar-blind photodetectors are sensitive to short-wavelength ultraviolet light but insensitive to visible sun light.

Silicon photonics has the potential to democratize high-speed optics through greater integration and volume production. This technology has long been the subject of interest in the optical networking industry and has already gained a foothold in the data center network. These chips are also used in military and consumer applications.

Video: Why Making Chips is So Hard!
