Challenges Testing Silicon Photonic Devices

university wafer substrates

What Substates are Used to Fabricate Silicon Photonics?

A research scientist requested the following SOI wafer quote:

Would it be able for University Wafer to order from SOITEC? I need 225nm Si / 2.0um BOX, which is a very common specs for silicon photonics

Reference #222904 for specs and pricing.

What SOI Wafers Used to Research Silicon Photonic Waveguides?

A PhD in photonics engineering requested the following quote for their research.

 I would like to purchase some prime SOI wafer or silicon photonics waveguides, with Si layer is 220nm, BOX(SiO2) layer is 2um, Substrate layer is 725um

I am looking for SOI wafers as follows or similar.

- 150 <100>,
- No type and resistivity is preferred. 475um SSP
- No thickness requirement.
- Oxide 1 um
- Top Silicon 0.22 um or similar

Reference #222228 for specs and pricing.

Get Your Quote FAST! Or, Buy Online and Start Researching Today!





CAPTCHA Image



Fused Quartz Used for Evanescent Field Enhanced Fluorescence on a Photonic Crystal Surface Research

Full research paper.

Reducing the background fluorescence from the sensor substrate is critical for the detection of fluorescent tags present at low on centrations. The flame-fused quartz substrate (University
Wafer)
used in this experiment exhibits very-low autofluorescence when excited by a red laser source. The autofluorescence level of the quartz substrate was compared to a commercial glass

Wafer spec:

Fused Quartz Item #518
100mm(4 inch) 550um thick double side polished Quartz wafers.

Reference #93968

What is Silicon Photonics?

Watch the video and learn!

SOI Used to Fabricate Photonic Devices

A masters student from a science and technology department requested the following quote:

In my laboratory, we have the research project about SOI Photonic Device. So, we are looking for the company/laboratory that could fabricate our SOI device with the thickness of 0.5 um (the picture as attached).

Could the university wafers help us in fabricating our SOI Passive device?

Reference #237913 for specs and pricing.

Monocrystalline Silicon

Monocrystalline silicon is a material that is used to create solar cells. These cells convert solar energy into electric energy for household appliances, such as refrigerators and lights. Some monocrystalline silicon cells can even replace conventional solar cells. These are known as PV cells, and they are a growing market in the energy storage industry. The process is known as seed crystallization. The process is very complex, and it can take several months to grow a single monocrystalline silicon cell.

The process of manufacturing monocrystalline silicon is an excellent way to reduce costs and increase productivity. Ingots are typically five meters long, and many companies have made significant progress in recent years. Some manufacturers have reported being able to pull five ingots per crucible. This means a lower cost and increased productivity for the manufacturer. Ingots can be up to a kilometer in length, and that's the maximum size of monocrystalline silicon.

The process for producing monocrystalline silicon is relatively simple. It starts with a square ingot or large slab, which is broken into smaller bricks. Then the bricks are sliced into wafers that are less than a millimetre thick. Once cut, the silicon wafers are polished and used in solar panels. Another way to produce monocrystalline silicon is by breaking down poly silicon and refining it into a cylindrical ingot. The resulting monocrystalline silicon is much more efficient at converting sunlight into electricity.

The process is also quite complex and complicated. Monocrystalline silicon is a multi-step process that requires multiple steps to make it, including cooling and annealing. But if you're ready to spend a lot of money to develop monocrystalline silicon, you should consider this technology. Unlike multicrystalline silicon, this material is not likely to lose its value, and will continue to increase in price. There are several advantages to using PERC-based monocrystalline silicon.

RCz is not the only monocrystalline silicon technology on the market. GCL-Poly, the world's largest wafer manufacturer, recently bought SunEdison's continuous Czochralski process intellectual property and has begun a joint venture to build 20 GW of monocrystalline ingot capacity. Further developments are likely to follow, and the competition will continue to increase. But, the benefits of monocrystalline silicon are many. Its low cost and high efficiency make it a desirable material for solar applications.

The biggest advantage of monocrystalline silicon is that it has a continuous crystal lattice and lacks any grain boundaries. Its high oxygen content may help it to be an intrinsic semiconductor, but it is not. This means that monocrystalline silicon can be doped with phosphorus or boron, creating n-type silicon. The main advantage to this process is that it is a cost-effective and time-efficient method of producing monocrystalline silicon.

RCz is not the only monocrystalline silicon technology on the market. Other manufacturers have begun to use a different process to manufacture this type of silicon. For example, GCL-Poly has purchased the intellectual property for SunEdison's continuous Czochralski process and formed a joint venture to build a 20 GW of monocrystalline ingot capacity. These innovations will make it possible for solar companies to produce high-quality products at competitive prices.

The most common monocrystalline silicon is produced with the Cz method. The advantage of this method is that it is highly resistant to thermal stress and has a low cost. The silicon used in this process is high in oxygen content and is capable of converting solar energy into electricity. However, these factors do not apply to all of them. As a result, monocrystalline silicon is still the most cost-effective of all the three types. So, it is worth researching all of these technologies to reduce the costs of producing these solar panels.

There are currently many technologies that can produce monocrystalline silicon. RCz is the most popular, but it is not the only way to create solar panels. Other technologies such as PERC cell technology are also available, which are less expensive and easier to integrate. While RCz is the most widely used monocrystalline silicon technology, it is not the only one that is available. In fact, it is just one of the many technologies that are available for the production of solar ingots.



What is Silicon Photonics?

In this article, we'll dispel some common myths about silicon photonics, including the costs and applications of what does a silicon photonics chip look likesilicon photonics. To make the most of this technology, you should understand how the process works and the many applications for silicon photonics. This article also addresses costs and device cost issues. In addition, we'll look at some of the key technical challenges that are faced in silicon photonics production.

What is a Silicon Photonic Device?

Let us source the spec you need for your research!

These devices use light to transfer information. The lasers in the PDGS process combine multiple signals into one pulse. The signal then travels over an optic fiber. Once the data has been sent, it can be read by a photodetector. These devices have many uses in computer technology. They are a breakthrough in optical communication. They are also ideal for high-speed Internet.

The main characteristic of a silicon photonic device is its high thermo-optic coefficient, which makes passive devices sensitive to temperature changes. To overcome this problem, PDGS was developed. It allows for electro-optic modulation and is independent of the input shape. It is based on the fact that the reverse biased p-n junction overlaps a waveguide mode. This makes it possible to create a wide range of wavelengths.

Another feature of PDGS is that it can be monolithically integrated with electronic circuits. This means that silicon photonic devices can be used alongside electronics without any interference. These devices have many advantages, including decreased energy consumption, reduced heat generation, and improved speed. This makes them attractive for various applications. In addition, photonic chips can be manufactured into thin films for printing, which are more efficient than conventional methods.

What are Some Myths About Silicon Photonics?

For several decades, Silicon photonic technology has been predicted to replace copper wires in a variety of applications. However, there are several misconceptions about silicon photonics, including the assumption that silicon-based technology can be adopted in a wide range of applications. Chris Cole, VP of Advanced Development at II-VI, challenged this belief. He said that the wide-spread replacement of copper wires was a myth.

First of all, silicon photonics is not cheap. Despite what many people think, it is not cheap. It costs a great deal to develop silicon photonic components. In addition to the silicon costs, the other expenses involve the development of components, masks, testing, and process development. However, despite these costs, silicon photonics can still deliver decent chip yields. In addition, silicon photonics is still evolving, and new capabilities are being developed constantly.

In silicon photonics, alignment of optical components is possible through digital gradient search. Optimal alignment in silicon photonics is complex due to the large number of array elements and multi-DOF optimization. Moreover, silicon photonics devices rarely produce clean Gaussian profiles. Therefore, secondary maxima are not a concern. Also, a complex array of components may lead to multiple errors, which complicates the optimization process.

Another myth about silicon photonics is that it is difficult to manufacture these devices. These devices begin with a silicon wafer and are then fabricated using semiconductor fab tools. Then, optical components and circuitry are printed onto the silicon wafer. Because photons and electrons do not obey the same physics, the alignment tolerances for photons are much more exact than for electrons. This means that a silicon photonic device can integrate hundreds of devices onto a single chip.

What are Silicon Photonic Applications?

Silicon photonics is a technology that utilizes light to transmit data. The fundamental difference between this technology and electrical wiring is that light has higher bandwidth. Because it is based on semiconductors, silicon photonics can scale as high as one gigabit per second. But because silicon photonics is still a relatively young technology, it faces many obstacles in its adoption. Let's look at the applications of silicon photonics in the datacom market.

Several major fields use silicon photonics in their various applications. It is widely used in high-performance computing systems, data centers, and communication networks. Other applications include bio-sensing and light detection for autonomous cars. Companies are advancing the field and addressing the design challenges it involves. Universities are also actively exploring applications in silicon photonics. Listed below are some of the most common applications of silicon photonics.

Photonic bandgaps: By inducing periodic holes in a high-dielectric material, photonic bandgaps are created. These photonic bandgaps are highly absorbing at wavelengths higher than 2 um. Photonic crystals can also be fabricated from other glass materials. For longer wavelength transmissions, crystalline and hollow fiber waveguides are used. In addition, different chalcogenides may be used to create optical fibers with different compositions.

Monolithic integration of optical gain into silicon photonics has long been a goal. This goal has been difficult to realize due to three problems. First, a polar compound is grown on a nonpolar substrate. This results in antiphase domains and a large lattice mismatch, degrading performance. Second, the difference in thermal expansion results in cracking, strain, and defect migration during cooldown.

What Do Silicon Photonics Costs?

Integrated optics was too expensive to make a difference in the datacom market until chiplets emerged in the 1990s. Today, chiplets have changed that by enabling 3D ICs that integrate optical interconnects and other components. As the photonics industry grows, it will need to apply the same best manufacturing practices and scalability that made CMOS chips so popular. Silicon photonics is set to enable highly integrated optics that will bring down costs and improve throughput.

The cost of silicon photonics is dependent on the technology used to manufacture the chips. Silicon photonics chips, for example, have the potential to be used in billions of distributed sensors and in diagnostic assays. Its low cost is an advantage, as chipmakers do not need to produce complex circuitry for these devices. However, they must be priced competitively to attract consumers. This technology is also highly susceptible to counterfeiting.

The use of ICs can reduce manufacturing costs as the semiconductor laser is cheaper than conventional wiring. Integrated electronics have reduced system-level power consumption and device-level capacitance. Over the last decade, target power requirements for datacom transceivers have fallen from thousands of pJ/bit to just a few nanowatts. The semiconductor laser is an important interconnect. Eventually, chipmakers will move from disaggregated architectures to integrated ones.

The costs of silicon photonics will cross below the price of copper in the next few years. Nevertheless, this is an important step forward for the semiconductor industry, as it paves the way for more efficient communication in the long run. Silicon photonics will replace copper in integrated circuits, which makes them more energy efficient and can be more affordable. The costs of silicon photonics are expected to fall below copper soon, making this a key technology for the data center.

What are Some Silicon Photonic Devices?

CMOS technologies are an effective way to implement passive photonics devices on SOI substrates. Because this microelectronic process is mature, large CMOS foundries require considerable effort in order to modify it to suit new applications. However, low and medium-scale IC foundries are more amenable to changes. The combined fabrication of silicon photonics devices is fixed to a single CMOS technology, and a 130-nm CMOS technology might not be suitable for a 40-G device.

  • Optical Modulators
  • Photonic-Electronic Integration
  • MID-IR Group IV Photonics
  • Multilayer Photonic Circuits
  • Optical Sources
  • Material Platforms for Sensing
  • Silicon Germanium (SiGe) Growth
  • Wafer Scale Testing
  • Packaging

To drive the growth of this market, leading players are entering into strategic partnerships and collaborations. They are also investing in R&D for silicon photonics technologies. For example, IBM Corporation invested between five and seven percent of its total R&D budget in 2017 in the silicon photonics segment. Other key players operating in the global silicon photonics devices market include Luxtera, Intel Corporation, Cisco Systems, and Acacia Communications Inc.

The emergence of smartphones has spurred the development of silicon photonics devices. Massive amounts of data are generated by smartphones, and silicon photonics devices can help data centers maximize their performance. Also, as data centers increasingly rely on cloud computing, silicon photonics devices will help network operators reconfigure their networks in real time. A popular application is tunable lasers, which provide high performance, and dense wavelength-division-multiplexing technology is evolving.

In addition to providing high-performance silicon photonic devices, these devices are also more energy-efficient than conventional ones. In addition to reducing power and space consumption, silicon photonic products are incredibly efficient, allowing the industry to pack more bandwidth into a given volume and power budget. This technology has the potential to transform the way we work, live, and play. These advantages can help the semiconductor industry grow at a rapid pace.

What is the Size of the Silicon Photonics Market?

The global silicon photonics market is segmented into various segments based on application. The key segments include data center, high-performance computing, telecommunications, medical, and life sciences, and sensing. The growth of the silicon photonics market is anticipated to be mainly driven by the increasing awareness of optoelectronics and increased penetration of smartphones. This report provides an insight into the key market drivers and restraints for this segment.

Transceivers based on silicon photonics are expected to drive the market. In the next few years, silicon photonics transceivers should reach more than $1 billion, and the market for these components is expected to grow even further to reach USD 7.25 billion by 2028. The sensing applications of silicon photonics will boost the growth of the market, thereby benefiting automotive, optical communication, and other novel applications in the future.

The major regions of the silicon photonics market are the U.S., Canada, and Mexico. Other key regions include Argentina, and Brazil, as well as the rest of South America. The market for silicon photonics is also expected to grow at the fastest CAGR between 2016 and 2025. The North American region is predicted to lead the market due to the early adoption of advanced technologies, government support, and increased data transfer needs. The region also has the largest share in the market, primarily due to the adoption of silicon optical modulators and wavelength-division multiplexer filters.

The report on silicon photonics market provides an in-depth analysis of the market, covering 12 years' trend and forecast. These insights enable the reader to make informed business decisions and develop a growth strategy based on the current and future market conditions. Silicon photonics market is segmented into four main categories: products, components, applications, and geography. In addition to these, the report also includes a competitive landscape and a detailed analysis of recent developments and the regulatory environment.

Video: Silicon Photonics Explained

Challenges in Testing and Characterizing Silicon Photonic Devices

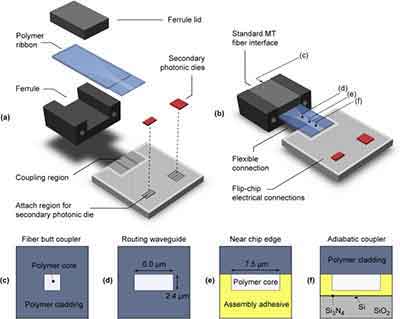

challenges testing silicon photonic electronicsFor silicon photonic devices, there are several challenges to be addressed. Passive components have high port counts, and the devices have many polarization-dependent elements. Fortunately, there are solutions available. One of the most effective is a multiport detection system that measures optical insertion and return losses with a continuously tunable laser. This allows the user to quickly obtain an optical spectrum of the device with very high resolution.

Another challenge involves obtaining accurate and fast measurements of the device. The silicon photonics chip is a planar device, so coupling light into the chip is difficult. The most effective way to achieve this is by using incident light on the chip's surface. But if the device has multiple outputs, it is difficult to test each of them. The solution is to use a grating coupler, which couples light at ten to twelve degrees off the vertical.

This method permanently corrects fabrication errors by implanting germanium ions to break the silicon crystal, and then healing it selectively with a laser. The trimming process requires that the device undergoes a series of tests, including measurement of the power output at the output port. The device may also need annealing, a process that requires three fibres. The measurement must be precise to avoid damaging the silicon photonics.

There are other challenges in testing and characterizing silicon photonic devices. First, the device must be fabricated using a single-mode interferometer, which is a very complex process. A single-mode interferometer has only two input ports, which is difficult to align. The other challenge is measuring the sidewall angle of the device. Since the resulting y-junction waveguides have multiple outputs, the testing program must be highly precise to assess their performance.

Another challenge is that silicon photonic devices need to be tested to ensure that they are functional. Moreover, silicon photonics devices are complex, which makes it difficult to test them. Besides, the testing process must be done on a single wafer to evaluate their performance. The devices need to be monitored by a team that can make a decision based on the results. The team needs to use three fibres to measure the device's performance.

There are many challenges to test and characterize silicon photonic devices. One of the greatest is the lack of laboratory space. Developing and evaluating these devices is difficult, but it is possible. There are many advantages to this technology, such as the semiconductor ecosystem and the resulting infrastructure. The challenges of developing and testing silicon devices are vast. The test and characterizing processes require careful analysis of the device.

What Wafers Are Used in Photonic Applications?

Our research clients are working on developing novel optoelectronics based on Si, Ge, and Sn material systems compatible with modern Silicon electronics processing facilities.

Below is a typical quote:

Researcher:

"I am interested in purchasing 3in wafers of ~330nm SiN on ~3300nm SiO2 all on Si substrate, for photonic applications. If there are wafers in stock that are suitable for photonic/waveguide applications but not of the exact thickness mentioned above, I can also take those because that will arrive sooner. Please send me a quote for 10 wafers and how long they will take to arrive?"

UniversityWafer, Inc. Replied

Pls see below for the offer on required "330nm SiN / 3um SiO2 / Si stack" Wafer for photonic applications,We also quote 4'' for your reference

1. 3'' Waveguide Layer: Si3N4 0.33um grown LPCVD
Insulating Layer: Thermal Oxide SiO2 3.0um
Substrate Carrier Layer: <100> orient. Dia. 76.2+/-0.3mm,380+/-25um,SSP or DSP,N or P-type,1~100 Ohm.cm,Semi flat
Stack Structure: 330nm Si3N4 / 3000nm SiO2 / 380um Silicon Wafer
Qty. 10pcs

$Reference #266490 for pricing

2. 4'' Waveguide Layer: Si3N4 0.33um grown LPCVD
Insulating Layer: Thermal Oxide SiO2 3.0um
Substrate Carrier Layer: <100> orient. Dia. 100.0+/-0.3mm,500+/-25um,SSP or DSP,N or P-type,1~100 Ohm.cm,Semi flat
Stack Structure: 330nm Si3N4 / 3000nm SiO2 / 500um Silicon Wafer
Qty. 10pcs

$Reference #266490 for pricing
